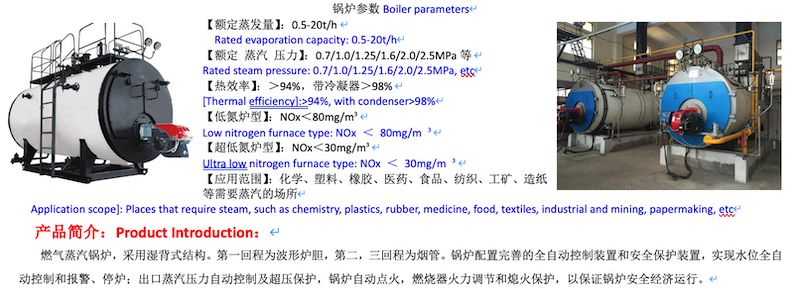

燃?xì)庹羝仩t出口應用于天燃?xì)庳S富的中東和西亞國家（如俄羅斯，烏磁別克斯坦，伊郎，伊拉克，沙特阿拉伯，土耳其，印度，巴基斯坦）

Gas and steam boilers are exported to countries in the Middle East and West Asia rich in natural gas (such as Russia, Uzbekistan, Iran, Iraq, Saudi Arabia, Türkiye, India, Pakistan)

燃?xì)庹羝仩t是以天然氣為燃料，在爐內燃燒放出來的熱量，加熱鍋內的水，并使其汽化成蒸汽的熱能轉換設備，水在鍋（鍋筒）中不斷被爐里氣體燃料燃燒釋放出來的能量加熱溫度升高并產生帶壓蒸汽。

Gas steam boiler is a thermal energy conversion equipment that uses natural gas as fuel, burns the heat released in the furnace, heats the water in the pot, and vaporizes it into steam. The water in the pot (drum) is continuously heated by the energy released by the combustion of gas fuel in the furnace, heating the temperature and producing pressurized steam.

CleanShot 2024-04-01 at 13.37.20@2x_800x300

Gas steam boiler adopts a wet back structure. The first return is the waveform furnace, and the second and third return are the smoke tubes. The boiler is equipped with fully automatic control devices and safety protection devices to achieve fully automatic water level control, alarm, and shutdown; Automatic control of outlet steam pressure and overpressure protection, automatic boiler ignition, burner firepower regulation and shutdown protection to ensure safe and economical operation of the boiler.

該產品的燃料為天然氣，燃料從燃燒器噴出，被電子點火棒點燃，在爐膽內微正壓燃燒。高壓煙氣由回燃室轉向180°入第二回程煙管，然后在前煙箱處再次轉向180°進入第三回程煙管后，經過煙箱經冷凝式節能器及煙囪排入大氣。

The fuel for this product is natural gas, which is sprayed out from the burner and ignited by an electronic ignition rod. It burns under slightly positive pressure inside the furnace. The high-pressure flue gas turns 180 ° from the combustion chamber into the second return flue pipe, and then turns 180 ° again at the front flue box into the third return flue pipe. After passing through the flue box, it is discharged into the atmosphere through a condensing energy-saving device and chimney.

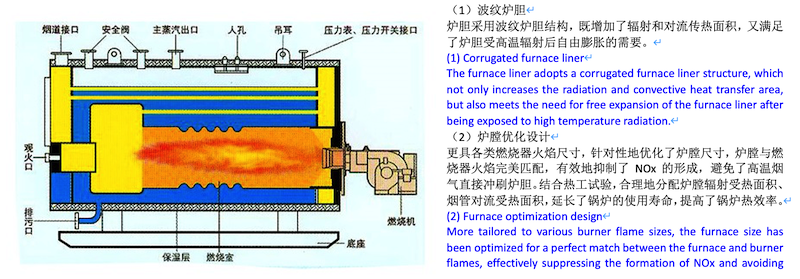

構造與性能：onstruction and performance:

CleanShot 2024-04-01 at 13.38.01@2x_800x279

direct flushing of high-temperature flue gas into the furnace liner. By combining thermal experiments, the reasonable allocation of furnace radiation heating area and smoke pipe convection heating area has extended the service life of the boiler and improved its thermal efficiency.

（3）煙氣系統

采用上乘的三回程全濕背式結構；二、三回程煙管采用低阻螺旋傳熱技術，換熱效果好、使用壽命長；獨特的前后煙箱設計制作工藝，內置迷宮式隔熱裝置，外置U型卡槽式鉸鏈設計，整體鋼制面板，厚重結實，有效地降低了散熱損失，提高鍋爐熱效率。

(3) Smoke system

Adopting a superior three return wet back structure; 2、 The three return smoke pipe adopts low resistance spiral heat transfer technology, which has good heat transfer effect and long service life; The unique design and manufacturing process of the front and rear smoke boxes, with built-in maze type insulation device, external U-shaped card slot hinge design, and overall steel panel, are thick and sturdy, effectively reducing heat loss and improving boiler thermal efficiency.

（4）節能器、冷凝器 (4) Energy saving device, condenser

結構緊湊

Compact structure

并聯布置

Parallel arrangement

傳熱性能好

Good heat transfer performance

翅片管換熱器

Finned tube heat exchanger

材質

material quality

布置于鍋爐頂部，結構緊湊，無占地面積。

對于熱水鍋爐的節能器、冷凝器，采用并聯兩級布置，工質流速降低，減小了節能器、冷凝器中工質流動阻力

逆流布置結構，換熱溫差大，傳熱性能好

采用優化設計的翅片管換熱器，翅化比大，翅化效率高，煙氣流阻小。

耐腐蝕碳鋼、ND鋼（09CrCuSb）、不銹鋼（SUS304）等材質可選

Located on the top of the boiler, it has a compact structure and no footprint.

For the energy-saving device and condenser of hot water boilers, a parallel two-stage arrangement is adopted, which reduces the flow rate of the working fluid and reduces the flow resistance of the working fluid in the energy-saving device and condenser

Countercurrent layout structure, large heat transfer temperature difference, and good heat transfer performance

The finned tube heat exchanger with optimized design has a high finning ratio, high finning efficiency, and low flue gas flow resistance

Corrosion resistant carbon steel, ND steel (09CrCuSb), stainless steel (SUS304) and other materials are optional

（5）配件 (5) Accessories

壓力表

Pressure gauge

超壓保護裝置

Overpressure protection device

水位計

Water level gauge

布水器

Water dispenser

煙氣冷凝水收集排放

Collection and discharge of flue gas condensate water

鍋筒配件

Drum accessories

***復合保溫材料

High quality composite insulation materials

大口徑表盤、指針顯示、高精度壓力表；配備專用壓力表緩沖管。

遠傳壓力報警、機械式壓力開關報警、彈簧全啟式安全閥三重超壓保護裝置，確保鍋爐在額定壓力以內工作

鍋爐兩側，通過平衡桶連接水位計，板式、雙色、浮筒等多類水位計可選，水位觀察直觀、檢測穩定、控制靈敏。

鍋爐給水入口設置專用布水器，給水經布水器后分散均勻地進入鍋爐，避免了給水時的局部溫度驟降。

采用合理的煙道結構，燃?xì)馊紵a(chǎn)生的冷凝水迅速匯集，在前后煙箱排出，極大限度減小了冷凝水對鍋爐的腐蝕。

人孔、手孔等檢查孔設置齊全，位置合理，維護檢修方便。彈簧式安全防爆門，確保安全運行

保溫采用高熱阻硅酸鋁纖維+防火鋁箔熱量反射膜+保溫棉結構，導熱系數低，保溫效果好。

Large caliber dial, pointer display, high-precision pressure gauge; Equipped with Huayue dedicated pressure gauge buffer tube.

Triple overpressure protection devices, including remote pressure alarm, mechanical pressure switch alarm, and spring fully open safety valve, ensure that the boiler operates within the rated pressure

On both sides of the boiler, a water level gauge is connected through a balance bucket. Multiple types of water level gauges, such as plate, dual color, and float, are available. The water level observation is intuitive, the detection is stable, and the control is sensitive.

A dedicated water distributor is installed at the inlet of the boiler feed water, which disperses and evenly enters the boiler after passing through the distributor, avoiding local temperature drops during feed water.

By adopting a reasonable flue structure, the condensed water generated by gas combustion quickly collects and is discharged from the front and rear smoke boxes, greatly reducing the corrosion of condensed water on the boiler.

Manholes, handholes, and other inspection holes are fully installed, reasonably positioned, and easy to maintain and repair. Spring type safety explosion-proof door ensures safe operation

The insulation adopts a high thermal resistance aluminum silicate fiber+fireproof aluminum foil heat reflection film+insulation cotton structure, with low thermal conductivity and good insulation effect.

（6）外觀 (6) Appearance

***工業造型設計師精心設計的外觀，新穎獨特而又不失與周?chē)h(huán)境的協調，徹底改變了工業鍋爐笨重的形象；表面噴涂***環保漆，漆面色澤純正，耐水耐刮；前后爐面為高溫磨砂噴漆，平整美觀，堅固耐用，易于保養維護。

The appearance carefully designed by professional industrial designers is novel and unique, yet still in harmony with the surrounding environment, completely changing the bulky image of industrial boilers; The surface is sprayed with high-end environmentally friendly paint, with a pure color and water resistance and scratch resistance; The front and rear furnace surfaces are high-temperature frosted and painted, which are flat, beautiful, sturdy, durable, and easy to maintain.

· 燃?xì)庹羝仩t技術參數 Technical parameters of gas steam boilers

項目project

WNS1

WNS1.5

WNS2

WNS3

WNS4

WNS6

WNS8

WNS10

WNS12

WNS15

WNS20

額定蒸發量

Rated evaporation capacity

t/h

1.5

額定蒸汽壓力

Rated steam pressure

Mpa

0.7/1.0/1.25/1.6

飽和蒸汽溫度

Saturated steam temperature

℃

171/184/194/204

額定給水溫度

Rated feedwater temperature

℃

104(熱力除氧）/20（常溫除氧）

水容量

Water capacity

4.15

5.6

8.15

9.3

16.5

39.5

設計換熱面積

Design heat exchange area

136.7

172.4

219.8

305.3

378

478.5

556

697

967

設計熱效率

Design thermal efficiency

94~98

設計燃料

Design fuel

—

天然氣

主汽閥口徑

Main steam valve diameter

100

125

150

200

放汽閥口徑

Discharge valve diameter

安全閥口徑

Safety valve diameter

2×40
